MHC and Viruses - Molecular Mimicry

import polars as pl
import tempfile
import plotnine as p9
import p9customtheme
from tqdm import tqdm
import re


def load_data_1b():
    supplementary_table_1b_url = "https://static-content.springer.com/esm/art%3A10.1038%2Fs41467-024-53658-8/MediaObjects/41467_2024_53658_MOESM11_ESM.xlsx"
    df = pl.read_excel(supplementary_table_1b_url, sheet_id=2)
    # skip first row
    headers = list(df.row(0))
    # some headers are repeated 3 times, add suffixes _1, _2, _3
    header_count = {}
    for i, header in enumerate(headers):
        if header in header_count:
            header_count[header] += 1
            headers[i] = f"{header}_{header_count[header]}"
        else:
            header_count[header] = 1
    df = df[1:]
    df.columns = headers

    # We use a temporary CSV file to ensure consistent data types
    with tempfile.TemporaryDirectory() as tmpdir:
        df.write_csv(f"{tmpdir}/supplementary_table_1b.csv")
        df = pl.read_csv(
            f"{tmpdir}/supplementary_table_1b.csv", infer_schema_length=10000
        )

    return df


original_df = load_data_1b()
original_df.head(4)

basic_columns = ["Proteome ID", "Virus", "Viral Zone Family"]
original_df_8mers = original_df.select(
    basic_columns
    + ["0 mismatches", "≤ 1 mismatch", "≤ 2 mismatch", "≤ 3 mismatch"]
).with_columns([pl.lit(8).alias("k")])
original_df_12mers = (
    original_df.select(
        basic_columns
        + [
            "0 mismatches_2",
            "≤ 1 mismatch_2",
            "≤ 2 mismatch_2",
            "≤ 3 mismatch_2",
        ]
    )
    .with_columns([pl.lit(12).alias("k")])
    .rename(
        {
            "0 mismatches_2": "0 mismatches",
            "≤ 1 mismatch_2": "≤ 1 mismatch",
            "≤ 2 mismatch_2": "≤ 2 mismatch",
            "≤ 3 mismatch_2": "≤ 3 mismatch",
        }
    )
)
original_df_18mers = (
    original_df.select(
        basic_columns
        + [
            "0 mismatches_3",
            "≤ 1 mismatch_3",
            "≤ 2 mismatch_3",
            "≤ 3 mismatch_3",
        ]
    )
    .with_columns([pl.lit(18).alias("k")])
    .rename(
        {
            "0 mismatches_3": "0 mismatches",
            "≤ 1 mismatch_3": "≤ 1 mismatch",
            "≤ 2 mismatch_3": "≤ 2 mismatch",
            "≤ 3 mismatch_3": "≤ 3 mismatch",
        }
    )
)
original_df_melted = pl.concat(
    [original_df_8mers, original_df_12mers, original_df_18mers]
)
original_df_melted.head(4)

original_df_zscored = (
    original_df_melted.unpivot(
        index=basic_columns + ["k"],
        on=["0 mismatches", "≤ 1 mismatch", "≤ 2 mismatch", "≤ 3 mismatch"],
        variable_name="mismatches",
        value_name="percentage_matched",
    )
    # zscore normalization within each k and mismatches group
    .with_columns(
        [
            (
                (
                    pl.col("percentage_matched")
                    - pl.col("percentage_matched")
                    .mean()
                    .over(["k", "mismatches"])
                )
                / pl.col("percentage_matched").std().over(["k", "mismatches"])
            ).alias("zscore")
        ]
    )
    # replace mismatches with ""
    .with_columns(
        pl.col("mismatches")
        .str.replace_all(" mismatches", "")
        .str.replace_all(" mismatch", "")
    )
)
original_df_zscored.head(4)

suppl_file_1_url = "https://static-content.springer.com/esm/art%3A10.1038%2Fs41467-024-53658-8/MediaObjects/41467_2024_53658_MOESM3_ESM.xlsx"
suppl1 = (
    pl.read_excel(suppl_file_1_url)
    .select(["Proteome ID", "Taxon mnemonic"])
    .with_columns(
        pl.when(pl.col("Taxon mnemonic") == "null")
        .then("Proteome ID")
        .otherwise(pl.col("Taxon mnemonic"))
        .alias("Taxon mnemonic")
    )
)
suppl1.head(4)

mnemonic_order = [
    "UUKS",
    "TOSV",
    "UP000207632",
    "RVFVZ",
    "PTPV",
    "PIARV",
    "MACHU",
    "LYCVA",
    "LASSJ",
    "JUNIN",
    "UP000117676",
    "BUNSH",
    "BUNL8",
    "BUNYW",
    "SEOU8",
    "PUUMS",
    "HANTV",
    "DUGBA",
    "CCHFI",
    "VSIVA",
    "RABVP",
    "MOKV",
    "LBV",
    "ISFV",
    "EBLV1",
    "DUVV",
    "CHAV",
    "ABLVB",
    "PIV5",
    "NIPAV",
    "MUMPM",
    "MEASC",
    "UP000109776",
    "HENDH",
    "MABVM",
    "EBOZM",
    "HRSVB",
    "INCAA",
    "INBLE",
    "I34A1",
    "UP000181622",
    "WEEV",
    "EEVVP",
    "SINDV",
    "SFV",
    "SAGV",
    "RRVN",
    "ONNVG",
    "MAYAB",
    "EEEVF",
    "CHIKS",
    "BFV",
    "RUBVT",
    "HEVCH",
    "ZIKV",
    "YEFV1",
    "WNV",
    "POWVL",
    "UP000171556",
    "MVEV5",
    "LIV",
    "UP000180575",
    "KUNJM",
    "JAEVJ",
    "HCV77",
    "DEN1W",
    "ENMGO",
    "SALVA",
    "ROSV2",
    "POL1M",
    "EMCVR",
    "HRV8A",
    "HE701",
    "HED68",
    "HAVHM",
    "HPE2W",
    "CX16G",
    "COSAA",
    "AIVA8",
    "SOUV3",
    "SVC12",
    "NVN68",
    "LORDV",
    "MERS",
    "SARS2",
    "UP000147828",
    "SARS",
    "CVH22",
    "HUTV",
    "HASV1",
    "ROTHC",
    "ROTGA",
    "ROTSH",
    "BAVJK",
    "POVWU",
    "UP000154903",
    "POVK6",
    "POVJC",
    "POVBK",
    "HPV18",
    "HPV16",
    "HPV2A",
    "HPV1",
    "PAVHV",
    "AAV2S",
    "HHV6Z",
    "HCMVM",
    "VZVD",
    "HHV8P",
    "HHV7J",
    "HHV6U",
    "HHV2H",
    "HHV11",
    "EBVB9",
    "UP000137988",
    "YMTV5",
    "YLDV",
    "VAR67",
    "VACCW",
    "ORFSA",
    "MONPZ",
    "MCV1",
    "HSPV",
    "CWPXB",
    "ADE02",
    "SFVCP",
    "HTL1C",
    "FOAMV",
    "HV2BE",
    "HV1H2",
    "HBVG3",
    "HBVCJ",
    "HDVD3",
    "TTVV1",
][::-1]
# Make an polars enum
mnemonic_enum = pl.Enum(mnemonic_order)
original_df_zscored = original_df_zscored.join(
    suppl1, on="Proteome ID", how="left"
).with_columns(
    pl.col("Taxon mnemonic").cast(mnemonic_enum).alias("Taxon mnemonic")
)
original_df_zscored.head(4)

(

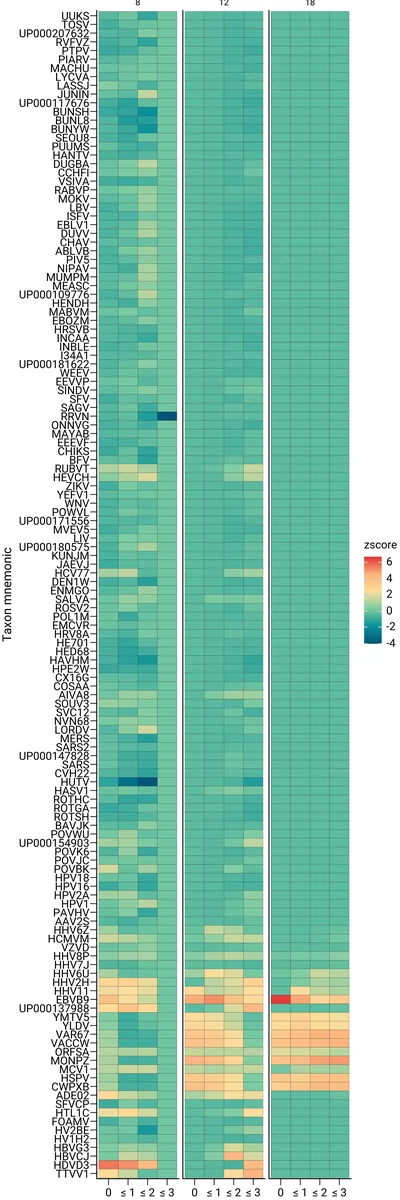

    p9.ggplot(
        original_df_zscored,
        p9.aes(x="mismatches", y="Taxon mnemonic", fill="zscore"),
    )
    + p9.geom_tile()
    + p9.facet_grid(". ~ k", scales="free", space="free")
    + p9.scale_fill_gradientn(
        colors=(
            "#045375",
            "#089099",
            "#7CCBA2",
            "#FCDE9C",
            "#FAB27B",
            "#E23333",
        ),
        limits=(-4, 6.7),
    )
    + p9.labs(x="")
    + p9.theme(figure_size=(6, 18))
)

from pathlib import Path

human_proteome_id = "UP000005640"
virus_proteome_ids = original_df.get_column("Proteome ID").unique().to_list()


data_folder = Path("./data/MHC_binding_predictions/")
data_folder.mkdir(parents=True, exist_ok=True)


def download_uniprot_df(proteome_id: str) -> pl.DataFrame:
    url = f"https://rest.uniprot.org/uniprotkb/stream?compressed=true&fields=accession%2Creviewed%2Cid%2Cprotein_name%2Cgene_names%2Corganism_name%2Clength%2Csequence%2Cec%2Ccc_catalytic_activity&format=tsv&query=%28%28proteome%3A{proteome_id}%29%29"
    filepath = data_folder / f"{proteome_id}.tsv.gz"
    if not filepath.exists():
        pl.read_csv(url, separator="\t").write_csv(filepath, separator="\t")
    df = pl.read_csv(filepath, separator="\t").unique(["Entry", "Sequence"])
    return df


human_proteome_df = download_uniprot_df(human_proteome_id)
human_proteome_df.head(4)

def get_kmers_set(sequence: str, k: int) -> set[str]:
    return {sequence[i : i + k] for i in range(len(sequence) - k + 1)}


def extract_ec_prefixes(ec: str) -> set[str]:
    """Extract EC prefixes for fast matching."""
    if not ec:
        return set()
    prefixes = set()
    for e in str(ec).split(";"):
        e = e.strip()
        if e:
            prefix = re.sub(r"\.-.*$", "", e)
            if prefix:
                prefixes.add(prefix)
    return prefixes


# some tests for extract_ec_prefixes
assert extract_ec_prefixes("2.7.7.48; 3.1.-.-; 3.4.19.12; 3.4.22.-") == {
    "2.7.7.48",
    "3.1",
    "3.4.19.12",
    "3.4.22",
}


def extract_ca_reactions(ca: str) -> set[str]:
    """Extract catalytic activity reactions."""
    if not ca:
        return set()
    return {r.strip() for r in str(ca).split(";") if r.strip()}


def ec_overlap_fast(human_prefixes: set[str], viral_ecs: list[str]) -> bool:
    """Check if any viral EC starts with any human prefix."""
    if not human_prefixes or not viral_ecs:
        return False
    for viral_ec in viral_ecs:
        for prefix in human_prefixes:
            if viral_ec.startswith(prefix):
                return True
    return False


def ca_overlap_fast(
    human_reactions: set[str], viral_reactions: set[str]
) -> bool:
    """Check if any reactions overlap."""
    if not human_reactions or not viral_reactions:
        return False
    return len(human_reactions.intersection(viral_reactions)) > 0


# Pre-process human proteome metadata (only once)
human_ec_prefixes: list[set[str]] = []
human_ca_reactions: list[set[str]] = []
human_sequences: list[str] = []

for row in human_proteome_df.iter_rows(named=True):
    human_sequences.append(row["Sequence"])
    human_ec_prefixes.append(extract_ec_prefixes(row["EC number"]))
    human_ca_reactions.append(extract_ca_reactions(row["Catalytic activity"]))

# Main computation with pre-computed data
perfect_match_results = []
ks = [8, 12, 18]
for k in ks:
    # Build human kmer -> set of protein indices (once per k)
    human_kmer_to_proteins: dict[str, set[int]] = {}
    for idx, seq in enumerate(
        tqdm(human_sequences, desc=f"Building human {k}-mers")
    ):
        for kmer in get_kmers_set(seq, k):
            if kmer not in human_kmer_to_proteins:
                human_kmer_to_proteins[kmer] = set()
            human_kmer_to_proteins[kmer].add(idx)

    print(f"Built {len(human_kmer_to_proteins)} unique human {k}-mers")

    for proteome_id in tqdm(
        virus_proteome_ids, desc=f"Processing viruses k={k}"
    ):
        virus_df = download_uniprot_df(proteome_id)
        total_kmers = 0
        matched_kmers = 0

        for row in virus_df.iter_rows(named=True):
            seq = row["Sequence"]
            # Pre-extract viral EC and CA for this protein
            viral_ecs = [
                e.strip()
                for e in str(row["EC number"] or "").split(";")
                if e.strip()
            ]
            viral_reactions = extract_ca_reactions(row["Catalytic activity"])

            for kmer in get_kmers_set(seq, k):
                total_kmers += 1

                # Check if kmer exists in human proteome
                if kmer not in human_kmer_to_proteins:
                    continue

                # Check if ANY human protein with this kmer is valid (no EC/CA overlap)
                for human_idx in human_kmer_to_proteins[kmer]:
                    h_ec_prefixes = human_ec_prefixes[human_idx]
                    h_ca_reactions = human_ca_reactions[human_idx]

                    # Skip if EC overlaps
                    if ec_overlap_fast(h_ec_prefixes, viral_ecs):
                        continue
                    # Skip if CA overlaps
                    if ca_overlap_fast(h_ca_reactions, viral_reactions):
                        continue

                    # Found a valid match!
                    matched_kmers += 1
                    break  # Only count once per viral kmer

        percentage_matched = (
            (matched_kmers / total_kmers * 100) if total_kmers > 0 else 0
        )
        perfect_match_results.append(
            {
                "Proteome ID": proteome_id,
                "k": k,
                "total_kmers": total_kmers,
                "matched_kmers": matched_kmers,
                "percentage_matched": percentage_matched,
            }
        )

perfect_match_results_df = (
    pl.DataFrame(perfect_match_results)
    .with_columns(pl.lit("Recomputed").alias("Source"))
    .rename({"percentage_matched": "0 mismatches"})
)
combined_df = pl.concat(
    [
        perfect_match_results_df,
        original_df_melted.with_columns(
            pl.lit("Maguire et al").alias("Source")
        ),
    ],
    how="diagonal_relaxed",
).select(["Proteome ID", "k", "Source", "0 mismatches"])

(

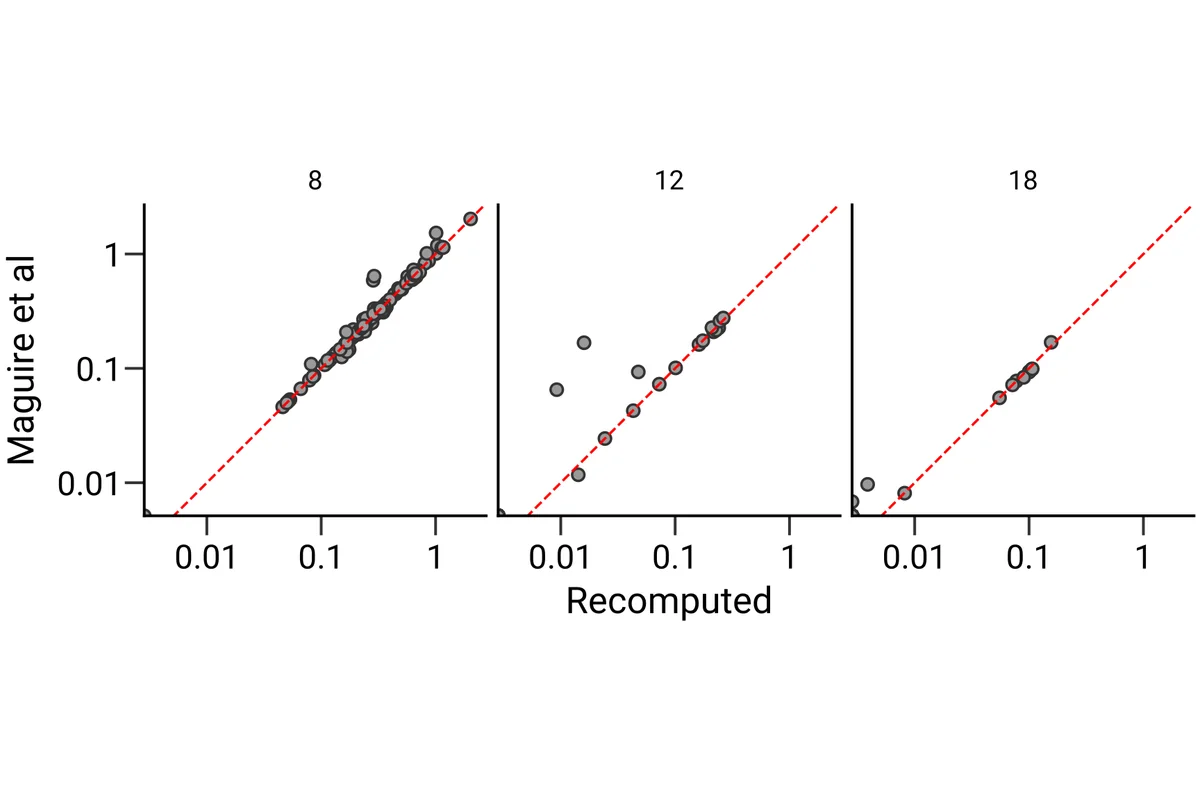

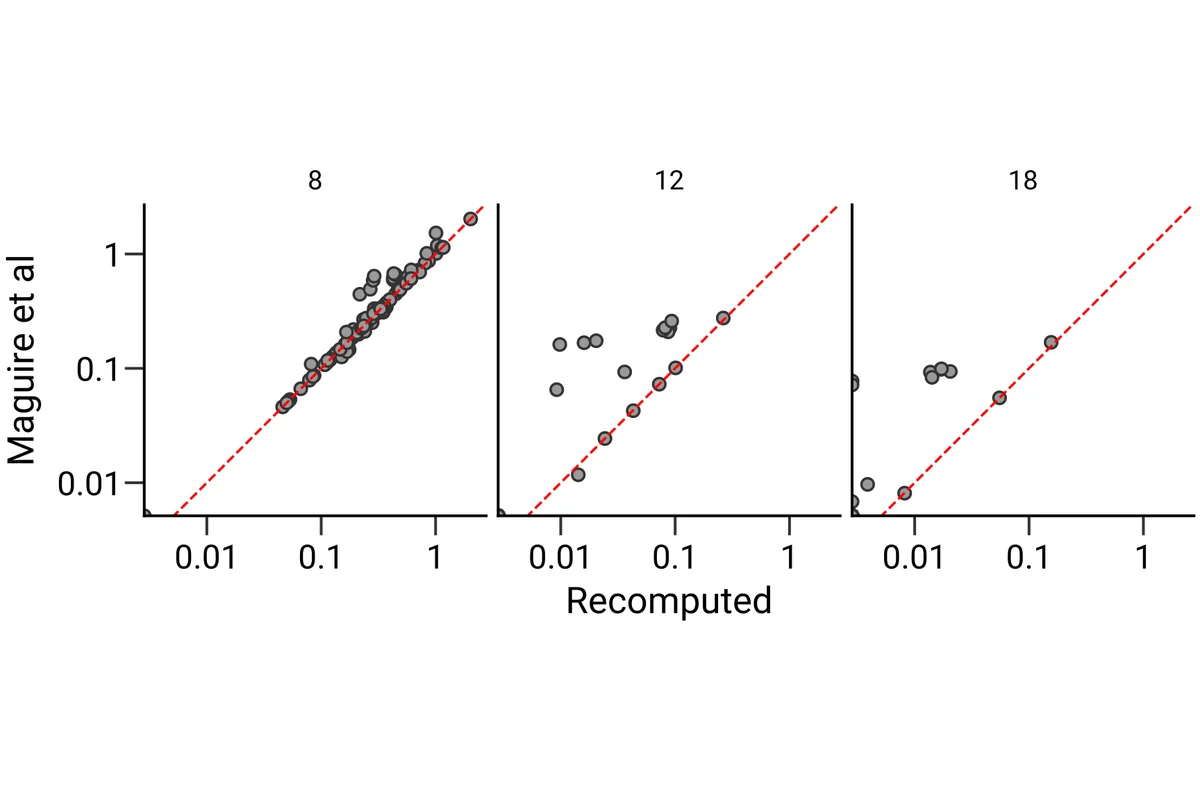

    p9.ggplot(
        combined_df.pivot(
            index=["Proteome ID", "k"], values="0 mismatches", on="Source"
        ).fill_null(0)
    )
    + p9.aes(x="Recomputed", y="Maguire et al")
    + p9.geom_point()
    + p9.facet_grid(".~k")
    + p9.scale_x_log10()
    + p9.scale_y_log10()
    + p9.coord_fixed()
    + p9.geom_abline(linetype="dashed", color="red")
)

perfect_match_results = []
for k in ks:
    # Build human kmer -> set of protein indices (once per k)
    human_kmer_to_proteins: dict[str, set[int]] = {}
    for idx, seq in enumerate(
        tqdm(human_sequences, desc=f"Building human {k}-mers")
    ):
        for kmer in get_kmers_set(seq, k):
            if kmer not in human_kmer_to_proteins:
                human_kmer_to_proteins[kmer] = set()
            human_kmer_to_proteins[kmer].add(idx)

    print(f"Built {len(human_kmer_to_proteins)} unique human {k}-mers")

    for proteome_id in tqdm(
        virus_proteome_ids, desc=f"Processing viruses k={k}"
    ):
        virus_df = download_uniprot_df(proteome_id)
        total_kmers = 0
        matched_kmers = 0

        for row in virus_df.iter_rows(named=True):
            seq = row["Sequence"]
            # Pre-extract viral EC and CA for this protein
            viral_ecs = [
                e.strip()
                for e in str(row["EC number"] or "").split(";")
                if e.strip()
            ]
            viral_reactions = extract_ca_reactions(row["Catalytic activity"])

            for kmer in get_kmers_set(seq, k):
                total_kmers += 1

                # Check if kmer exists in human proteome
                if kmer not in human_kmer_to_proteins:
                    continue

                # Check if ANY human protein with this kmer is valid (no EC/CA overlap)
                for human_idx in human_kmer_to_proteins[kmer]:
                    h_ca_reactions = human_ca_reactions[human_idx]

                    # Skip if CA overlaps
                    if ca_overlap_fast(h_ca_reactions, viral_reactions):
                        continue

                    # Found a valid match!
                    matched_kmers += 1
                    break  # Only count once per viral kmer

        percentage_matched = (
            (matched_kmers / total_kmers * 100) if total_kmers > 0 else 0
        )
        perfect_match_results.append(
            {
                "Proteome ID": proteome_id,
                "k": k,
                "total_kmers": total_kmers,
                "matched_kmers": matched_kmers,
                "percentage_matched": percentage_matched,
            }
        )
perfect_match_results_df = (
    pl.DataFrame(perfect_match_results)
    .with_columns(pl.lit("Recomputed").alias("Source"))
    .rename({"percentage_matched": "0 mismatches"})
)
combined_df = pl.concat(
    [
        perfect_match_results_df,
        original_df_melted.with_columns(
            pl.lit("Maguire et al").alias("Source")
        ),
    ],
    how="diagonal_relaxed",
).select(["Proteome ID", "k", "Source", "0 mismatches"])

(
    p9.ggplot(
        combined_df.pivot(
            index=["Proteome ID", "k"], values="0 mismatches", on="Source"
        ).fill_null(0)
    )
    + p9.aes(x="Recomputed", y="Maguire et al")
    + p9.geom_point()
    + p9.facet_grid(".~k")
    + p9.scale_x_log10()
    + p9.scale_y_log10()
    + p9.coord_fixed()
    + p9.geom_abline(linetype="dashed", color="red")
)

combined_df_zscore = (
    combined_df.unpivot(
        index=["Proteome ID", "Source", "k"],
        on=["0 mismatches"],
        variable_name="mismatches",
        value_name="percentage_matched",
    )
    # zscore normalization within each k and mismatches group
    .with_columns(
        [
            (
                (
                    pl.col("percentage_matched")
                    - pl.col("percentage_matched")
                    .mean()
                    .over(["k", "mismatches", "Source"])
                )
                / pl.col("percentage_matched")
                .std()
                .over(["k", "mismatches", "Source"])
            ).alias("zscore")
        ]
    )
    # replace mismatches with ""
    .with_columns(
        pl.col("mismatches")
        .str.replace_all(" mismatches", "")
        .str.replace_all(" mismatch", "")
    )
)
combined_df_zscore = combined_df_zscore.join(
    suppl1, on="Proteome ID", how="left"
).with_columns(
    pl.col("Taxon mnemonic").cast(mnemonic_enum).alias("Taxon mnemonic")
)

(
    p9.ggplot(
        combined_df_zscore,
        p9.aes(x="Source", y="Taxon mnemonic", fill="zscore"),
    )
    + p9.geom_tile()
    + p9.facet_grid(". ~ k", scales="free", space="free")
    + p9.scale_fill_gradientn(
        colors=(
            "#045375",
            "#089099",
            "#7CCBA2",
            "#FCDE9C",
            "#FAB27B",
            "#E23333",
        ),
        limits=(-4, 6.7),
    )
    + p9.labs(x="")
    + p9.theme(
        figure_size=(6, 18),
        axis_text_x=p9.element_text(angle=90, hjust=0.5),
    )
)

./build/fuzzsearch
Usage: ./build/fuzzsearch [OPTIONS]
Options:
  -q, --query FILE        Query proteome FASTA file (required)
  -r, --reference FILE    Reference proteome FASTA file (required)
  -o, --output FILE       Output TSV file (required)
  -k, --kmer-lengths LIST Comma-separated kmer lengths (default: 8,12,18)
  -m, --max-mismatches N  Maximum mismatches allowed (default: 3)
  -b, --batch-size N      Number of query sequences to process in a batch (default: 10000)
  -i, --index             Only build index and exit (optional)
  -t, --threads N         Number of threads to use (default: 1)
  -h, --help              Show this help message

Example:
  ./build/fuzzsearch -q query.fasta -r reference.fasta -o output.tsv -k 8,12,18 -m 3 -t 4

fasta_folder = data_folder / "fasta_files"
fasta_folder.mkdir(parents=True, exist_ok=True)


def proteome_to_fasta(proteome_id: str, fasta_folder: Path) -> Path:
    fasta_path = fasta_folder / f"{proteome_id}.fasta"
    if fasta_path.exists():
        return fasta_path

    proteome_df = download_uniprot_df(proteome_id)
    with open(fasta_path, "w") as fasta_file:
        for row in proteome_df.iter_rows(named=True):
            accession = row["Entry"]
            sequence = row["Sequence"]
            fasta_file.write(f">{accession}\n")
            # write sequence in lines of 60 characters
            for i in range(0, len(sequence), 60):
                fasta_file.write(sequence[i : i + 60] + "\n")
    return fasta_path


proteome_to_fasta(human_proteome_id, fasta_folder)
for proteome_id in virus_proteome_ids:
    proteome_to_fasta(proteome_id, fasta_folder)

! fuzzsearch --index \
!    -t 1 \
!    -q data/MHC_binding_predictions/fasta_files/UP000000344.fasta \
!    -r data/MHC_binding_predictions/fasta_files/UP000005640.fasta \
!    -m 3 \
!    -k 8,12,18 \
!    -o /dev/null 2> /dev/null

query_id	reference_id	k	query_pos	reference_pos
Q89268	Q92547	8	268	577
Q89269	Q92547	8	44	577
P03132	Q92547	8	268	577
D5SGZ8	Q8IV77	8	61	9
D5SGZ8	P47211	8	65	17
Q89270	Q92547	8	44	577

import subprocess
from concurrent.futures import ThreadPoolExecutor, as_completed
from time import sleep

result_folder = data_folder / "mhcfuzz_results/"
result_folder.mkdir(parents=True, exist_ok=True)
fasta_folder = data_folder / "fasta_files"


def process_proteome(m: int, uniprot_id: str) -> str | None:
    """Process a single proteome with fuzzsearch."""
    reference_fasta = fasta_folder / f"{human_proteome_id}.fasta"
    query_fasta = fasta_folder / f"{uniprot_id}.fasta"
    outfile = result_folder / f"{uniprot_id}_m{m}.parquet"
    tsv_file = result_folder / f"{uniprot_id}_m{m}.tsv"

    if outfile.exists():
        return None

    try:
        cmd = [
            "fuzzsearch",
            "-t",
            str(2),
            "-m",
            str(m),
            "-k",
            "8,12,18",
            "-r",
            str(reference_fasta),
            "-q",
            str(query_fasta),
            "-o",
            str(tsv_file),
        ]
        subprocess.run(
            cmd,
            check=True,
            stdout=subprocess.DEVNULL,
            stderr=subprocess.DEVNULL,
        )
    except subprocess.CalledProcessError as e:
        return f"Error processing {uniprot_id} with m={m}: {e}"
    sleep(5)  #  wait a bit to ensure file is written
    (
        pl.read_csv(
            tsv_file,
            separator="\t",
            schema={
                "query_id": pl.Utf8,
                "reference_id": pl.Utf8,
                "k": pl.Int8,
                "query_pos": pl.Int32,
                "reference_pos": pl.Int32,
            },
        )
        .with_columns(
            [
                pl.lit(m).alias("mismatch"),
                pl.lit(uniprot_id).alias("Proteome ID"),
            ]
        )
        .write_parquet(outfile, compression="snappy")
    )
    tsv_file.unlink()
    return None


# Build list of all tasks
tasks = [
    (m, uniprot_id)
    for m in [0, 1, 2, 3]
    for uniprot_id in original_df.get_column("Proteome ID").to_list()
]

# Run as multiple threads
with ThreadPoolExecutor(max_workers=8) as executor:
    futures = {
        executor.submit(process_proteome, m, uid): (m, uid) for m, uid in tasks
    }
    for future in tqdm(
        as_completed(futures), total=len(futures), desc="Running fuzzsearch"
    ):
        error = future.result()
        if error:
            print(error)

# load in the data and remove hits with catalytic activity overlaps
result_folder = data_folder / "mhcfuzz_results/"
results = []


def get_ca_df(ca_df: pl.DataFrame) -> pl.LazyFrame:
    return pl.DataFrame(
        [
            {
                "Entry": row["Entry"],
                "ca_set": list(extract_ca_reactions(row["Catalytic activity"])),
                "ca": row["Catalytic activity"],
            }
            for row in ca_df.iter_rows(named=True)
        ]
    ).lazy()


human_ca_df = get_ca_df(human_proteome_df).rename({"ca_set": "human_ca_set"})
for m in [0, 1, 2, 3]:
    for proteome_id in tqdm(
        virus_proteome_ids, desc=f"Processing viruses m={m}"
    ):
        parquet_file = result_folder / f"{proteome_id}_m{m}.parquet"

        uniprot_df = download_uniprot_df(proteome_id)
        if not parquet_file.exists():
            continue
        try:
            virus_hits = pl.scan_parquet(parquet_file, low_memory=True)
        except Exception as e:
            print(f"Error reading {parquet_file}: {e}")
            continue

        virus_df = (
            virus_hits.join(
                get_ca_df(uniprot_df).rename({"ca_set": "viral_ca_set"}),
                left_on="query_id",
                right_on="Entry",
                how="left",
            )
            .join(
                human_ca_df,
                left_on="reference_id",
                right_on="Entry",
                how="left",
            )
            .with_columns(
                (
                    pl.col("human_ca_set").list.set_intersection("viral_ca_set")
                ).alias("ca_overlap")
            )
            .filter(pl.col("ca_overlap").list.len().eq(0))
        )

        n_proteins = uniprot_df.height
        proteome_size = sum(uniprot_df.get_column("Length").to_list())
        mismatches = "0" if m == 0 else f"≤ {m}"

        results.append(
            (
                virus_df.select(["k", "query_pos"])
                .unique(["k", "query_pos"])
                .group_by("k")
                .agg(pl.count().alias("matched_kmers"))
                .with_columns(
                    (
                        pl.lit(proteome_size + 1 - n_proteins) - pl.col("k")
                    ).alias("total_kmers")
                )
                .with_columns(
                    (
                        pl.col("matched_kmers") / pl.col("total_kmers") * 100
                    ).alias("percentage_matched")
                )
                .with_columns(
                    pl.lit(proteome_id).alias("Proteome ID"),
                    pl.lit(mismatches).alias("mismatches"),
                )
                .collect()
            )
        )
results_df = pl.concat(results, how="vertical_relaxed")

combined_df = pl.concat(
    [
        results_df.with_columns(pl.lit("Recomputed").alias("Source")),
        original_df_zscored.with_columns(
            pl.lit("Maguire et al").alias("Source")
        ),
    ],
    how="diagonal_relaxed",
).select(["Proteome ID", "k", "Source", "mismatches", "percentage_matched"])

(

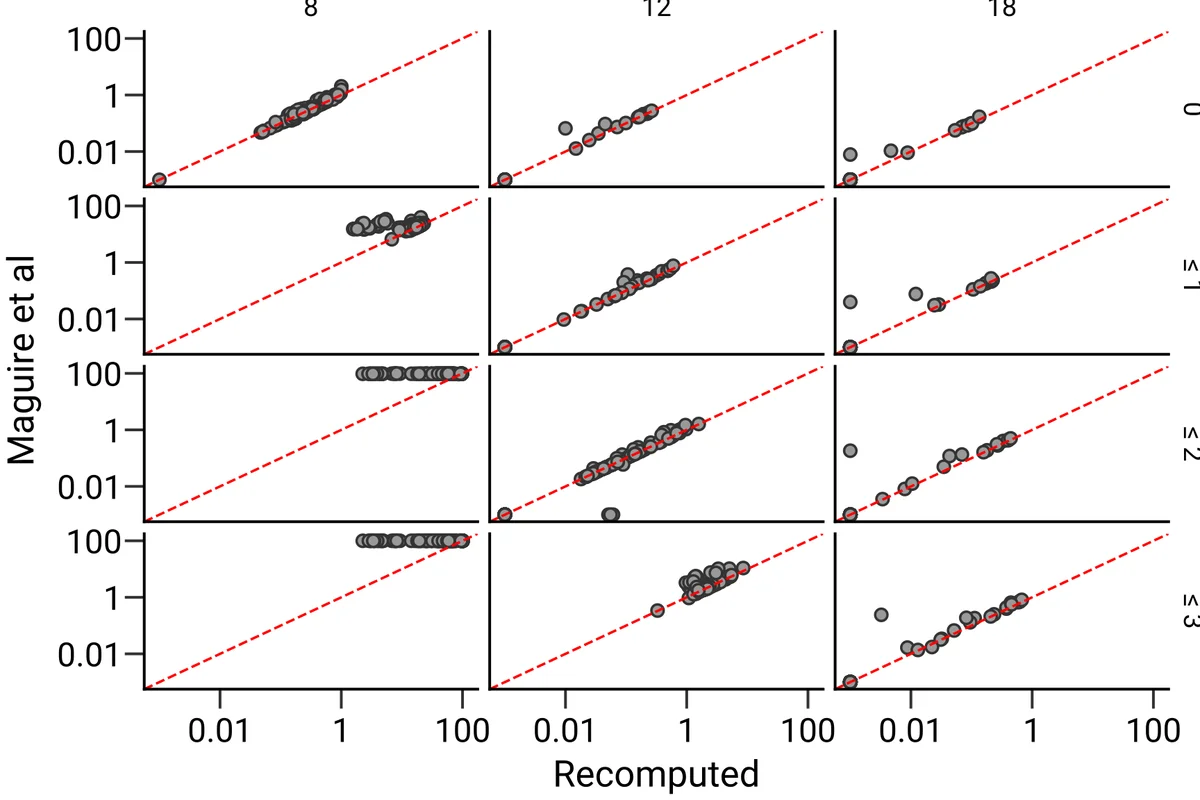

    p9.ggplot(
        combined_df.pivot(
            index=["Proteome ID", "k", "mismatches"],
            values="percentage_matched",
            on="Source",
        )
        .fill_null(0)
        .with_columns(
            pl.col("Recomputed") + 0.001, pl.col("Maguire et al") + 0.001
        )
    )
    + p9.aes(x="Recomputed", y="Maguire et al")
    + p9.geom_point()
    + p9.facet_grid("mismatches ~ k")
    + p9.scale_x_log10()
    + p9.scale_y_log10()
    + p9.geom_abline(linetype="dashed", color="red")
)

recomputed_df_zscored = (
    results_df.pivot(
        index=["Proteome ID"],
        on=["mismatches", "k"],
        values="percentage_matched",
    )
    .fill_null(0)
    .unpivot(
        index=["Proteome ID"],
        variable_name="variable",
        value_name="percentage_matched",
    )
    # Yes this is a hack, but this was a fast way
    # to get the zero values into the dataframe
    .with_columns(
        pl.col("variable")
        .str.extract(r"\"(.*)\".*,(\d+)\}", 1)
        .alias("mismatches"),
        pl.col("variable")
        .str.extract(r"\"(.*)\".*,(\d+)\}", 2)
        .alias("k")
        .cast(pl.Int8),
    )
    .with_columns(
        [
            (
                (
                    pl.col("percentage_matched")
                    - pl.col("percentage_matched")
                    .mean()
                    .over(["k", "mismatches"])
                )
                / pl.col("percentage_matched").std().over(["k", "mismatches"])
            ).alias("zscore")
        ]
    )
    .join(suppl1, on="Proteome ID", how="left")
    .with_columns(
        pl.col("Taxon mnemonic").cast(mnemonic_enum).alias("Taxon mnemonic")
    )
)

(
    p9.ggplot(
        recomputed_df_zscored,
        p9.aes(x="mismatches", y="Taxon mnemonic", fill="zscore"),
    )
    + p9.geom_tile()
    + p9.facet_grid(". ~ k", scales="free", space="free")
    + p9.scale_fill_gradientn(
        colors=(
            "#045375",
            "#089099",
            "#7CCBA2",
            "#FCDE9C",
            "#FAB27B",
            "#E23333",
        ),
        limits=(-4, 6.7),
    )
    + p9.labs(x="")
    + p9.theme(figure_size=(6, 18))
)
