Face Detection with Python

uv venv -p 3.13 # use 3.13, 3.12 does lead to some install issues for me
source .venv/bin/activate
uv pip install \
   jupyter \
   insightface==0.7.3 \
   hdbscan==0.8.40 \
   scikit-learn==1.7.1 \
   plotnine \
   onnxruntime \
   pillow \
   p9customtheme \
   umap-learn==0.5.9.post2

# Face Clustering Demo - Setup and Data Download
import shutil
import subprocess
import tempfile
from pathlib import Path


def get_testdataset(folder: Path = Path("./face_detection/testdata")) -> Path:
    test_dataset_url = "https://www.kaggle.com/api/v1/datasets/download/olgabelitskaya/yale-face-database"
    folder.mkdir(parents=True, exist_ok=True)

    if folder.exists() and any(folder.iterdir()):
        return folder

    if shutil.which("curl") is None:
        raise RuntimeError("curl is not installed")
    if shutil.which("unzip") is None:
        raise RuntimeError("unzip is not installed")

    with tempfile.TemporaryDirectory() as tmpdir:
        zip_path = Path(tmpdir) / "yale_face_database.zip"
        subprocess.run(
            ["curl", "-L", "-o", str(zip_path), test_dataset_url], check=True
        )
        subprocess.run(
            ["unzip", "-o", str(zip_path), "-d", str(folder)], check=True
        )
    return folder


dataset_path = get_testdataset()
image_files = [
    f
    for f in Path(dataset_path).glob("subject*")
    if f.is_file() and f.name.startswith("subject")
]
print(f"Found {len(image_files)} images in dataset at {dataset_path}")

import numpy as np
from insightface.app import FaceAnalysis
from PIL import Image

face_pipeline = FaceAnalysis(
    name="buffalo_l",
    providers=["CPUExecutionProvider"],
)
face_pipeline.prepare(ctx_id=0, det_size=(640, 640))

from io import BytesIO

import matplotlib.pyplot as plt
import requests
from matplotlib import patches

image_url = "https://upload.wikimedia.org/wikipedia/commons/7/7b/Malala_Yousafzai_with_Kamala_Harris.jpg"


def image_from_url(url: str) -> np.ndarray:
    try:
        response = requests.get(url, headers={"User-Agent": "Mozilla/5.0"})
        response.raise_for_status()
    except requests.RequestException as e:
        raise RuntimeError(f"Failed to download image from {url}: {e}")
    img = Image.open(BytesIO(response.content)).convert("RGB")

    return np.array(img)


img = image_from_url(image_url)
faces = face_pipeline.get(img)

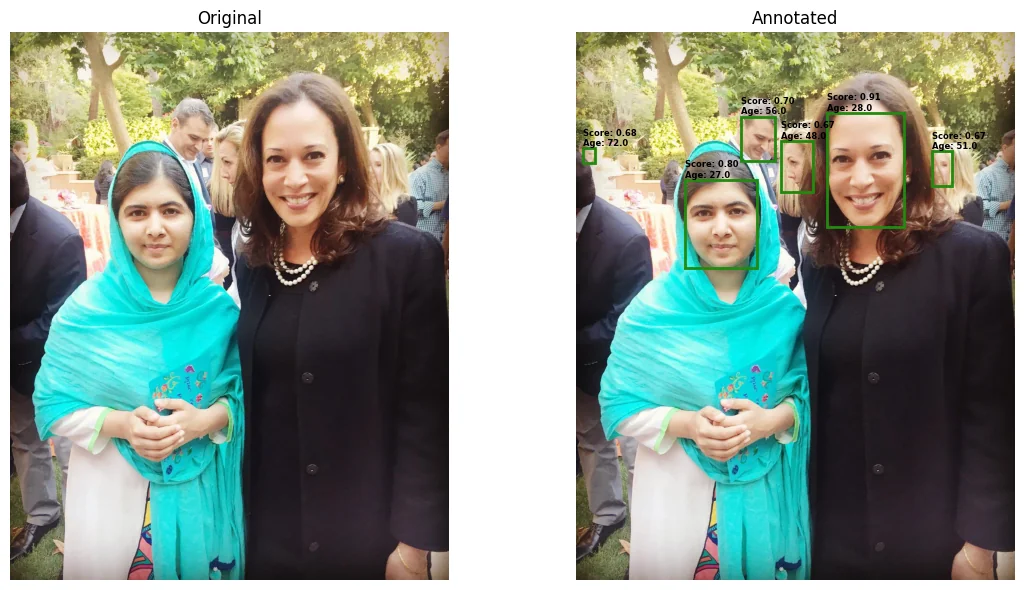

fig, axes = plt.subplots(1, 2, figsize=(12, 6))

# Original image
axes[0].imshow(img)
axes[0].set_title("Original")
axes[0].axis("off")

# Annotated image
axes[1].imshow(img)
for face in faces:
    box = face.bbox.astype(int)
    rect = patches.Rectangle(
        (box[0], box[1]),
        box[2] - box[0],
        box[3] - box[1],
        linewidth=2,
        edgecolor="#23890F",
        facecolor="none",
    )
    axes[1].add_patch(rect)
    label = f"Score: {face.det_score:.2f}\nAge: {face.age:.1f}"
    axes[1].text(
        box[0], box[1] - 5, label, color="black", fontsize=6, weight="bold"
    )

axes[1].set_title("Annotated")
axes[1].axis("off")

plt.tight_layout()
plt.show()

vice_presidential_image_url = "https://upload.wikimedia.org/wikipedia/commons/4/41/Kamala_Harris_Vice_Presidential_Portrait.jpg"
vice_presidential_img = image_from_url(vice_presidential_image_url)
vice_presidential_faces = face_pipeline.get(vice_presidential_img)
assert len(vice_presidential_faces) == 1, "Expected to find one face in the vice presidential image"

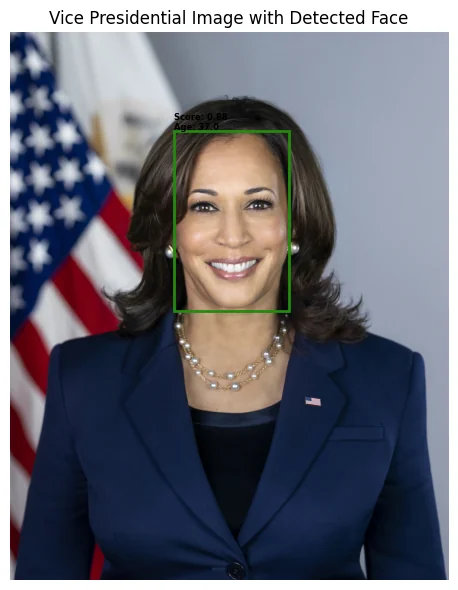

# show the detected face
fig, ax = plt.subplots(1, 1, figsize=(6, 6))
ax.imshow(vice_presidential_img)
box = vice_presidential_faces[0].bbox.astype(int)
rect = patches.Rectangle(
    (box[0], box[1]),
    box[2] - box[0],
    box[3] - box[1],
    linewidth=2,
    edgecolor="#23890F",
    facecolor="none",
)
ax.add_patch(rect)
label = f"Score: {vice_presidential_faces[0].det_score:.2f}\nAge: {vice_presidential_faces[0].age:.1f}"
ax.text(
    box[0], box[1] - 5, label, color="black", fontsize=6, weight="bold"
)
ax.set_title("Vice Presidential Image with Detected Face")
ax.axis("off")
plt.tight_layout()
plt.show()

def compute_embedding_distance(
    emb1: np.ndarray, emb2: np.ndarray, distance_metric: str = "euclidean", normalized: bool = False
) -> float:
    """
    Compute the unormalized Euclidean distance between two face embeddings.
    """
    if distance_metric == "euclidean":
        if normalized:
            emb1 = emb1 / np.linalg.norm(emb1)gst

            emb2 = emb2 / np.linalg.norm(emb2)
        return float(np.linalg.norm(emb1 - emb2))
    elif distance_metric == "cosine":
        if normalized:
            emb1 = emb1 / np.linalg.norm(emb1)
            emb2 = emb2 / np.linalg.norm(emb2)
        return 1 - np.dot(emb1, emb2) / (np.linalg.norm(emb1) * np.linalg.norm(emb2))
    else:
        raise ValueError(f"Unsupported distance metric: {distance_metric}")

kamala_embedding = vice_presidential_faces[0].embedding
distances = []
for face in faces:
    dist = compute_embedding_distance(kamala_embedding, face.embedding, distance_metric="euclidean", normalized=False)
    distances.append((face, dist))
distances.sort(key=lambda x: x[1])
print("Distances to Kamala Harris:")
for face, dist in distances:
    print(f"Distance: {dist:.4f}")

distances = []
for face in faces:
    dist = compute_embedding_distance(kamala_embedding, face.embedding, distance_metric="cosine", normalized=False)
    distances.append((face, dist))
distances.sort(key=lambda x: x[1])
print("Distances to Kamala Harris:")
for face, dist in distances:
    print(f"Distance: {dist:.4f}")

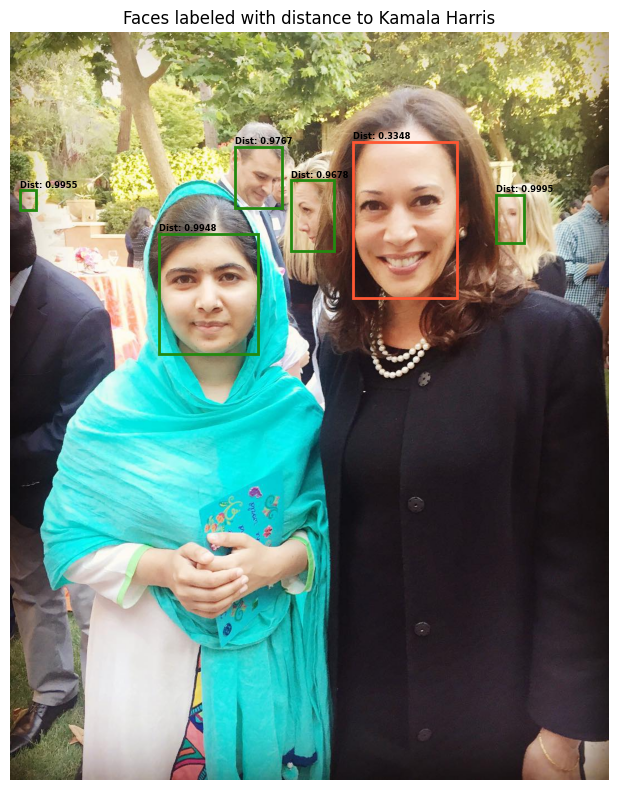

#label all faces with their distance to Kamala Harris
fig, ax = plt.subplots(1, 1, figsize=(8, 8))
ax.imshow(img)
for face, dist in distances:
    box = face.bbox.astype(int)
    rect = patches.Rectangle(
        (box[0], box[1]),
        box[2] - box[0],
        box[3] - box[1],
        linewidth=2,
        edgecolor="#FF5733" if dist < 0.6 else "#23890F",
        facecolor="none",
    )
    ax.add_patch(rect)
    label = f"Dist: {dist:.4f}"
    ax.text(
        box[0], box[1] - 5, label, color="black", fontsize=6, weight="bold"
    )
ax.set_title("Faces labeled with distance to Kamala Harris")
ax.axis("off")
plt.tight_layout()
plt.show()

from tqdm import tqdm
import sqlite3

photo_folders = [Path("~/Nextcloud/Bilder/Ordered/2025"), Path("~/Nextcloud/Bilder/Prachiti and Paul/2025")]
photo_folders = [folder.expanduser() for folder in photo_folders]

face_folder = Path("./data/facedetections/faces")
face_folder.mkdir(parents=True, exist_ok=True)

def find_jpg(folder: Path):
    # Find all jpg files in the folder and its subfolders
    return [f for f in folder.glob("**/*.jpg") if f.is_file()]
jpg_files = []
for folder in photo_folders:
    jpg_files.extend(find_jpg(folder))
print(f"Found {len(jpg_files)} jpg files")


class FaceEmbeddingDatabase:
    def __init__(self, path = "./data/facedetections/face_embeddings.db"):
        self.conn = sqlite3.connect(path)
        self._create_table()

    def _create_table(self):
        with self.conn:
            self.conn.execute("""
            CREATE TABLE IF NOT EXISTS face_embeddings (
                id INTEGER PRIMARY KEY,
                photo_name TEXT,
                embedding BLOB
            )
            """)

    def _delete_embedding(self, photo_path: Path):
        # if existing, delete the embedding for the given photo
        photo_name = photo_path.name
        with self.conn:
            self.conn.execute("""
            DELETE FROM face_embeddings WHERE photo_name = ?
            """, (photo_name,))

    def insert_embedding(self, photo_path: Path, embedding: np.ndarray):
        photo_name = photo_path.name
        self._delete_embedding(photo_path)

        with self.conn:
            self.conn.execute("""
            INSERT INTO face_embeddings (photo_name, embedding)
            VALUES (?, ?)
            """, (photo_name, embedding.tobytes()))

    def get_embedding(self, photo_path: Path) -> np.ndarray | None:
        photo_name = photo_path.name
        cursor = self.conn.cursor()
        cursor.execute("""
        SELECT embedding FROM face_embeddings WHERE photo_name = ?
        """, (photo_name,))
        row = cursor.fetchone()
        if row:
            return np.frombuffer(row[0], dtype=np.float32)
        return None

    def list_photos(self) -> list[Path]:
        cursor = self.conn.cursor()
        cursor.execute("""
        SELECT photo_name FROM face_embeddings
        """)
        rows = cursor.fetchall()
        return [Path(row[0]) for row in rows]

    def get_all_embeddings(self) -> dict[Path, np.ndarray]:
        cursor = self.conn.cursor()
        cursor.execute("""
        SELECT photo_name, embedding FROM face_embeddings
        """)
        rows = cursor.fetchall()
        embeddings = {}
        for row in rows:
            photo_name = Path(row[0])
            embedding = np.frombuffer(row[1], dtype=np.float32)
            embeddings[photo_name] = embedding
        return embeddings




# Process each jpg file and save detected faces as jpgd
def process_photo(photo_path: Path, output_folder: Path, db: FaceEmbeddingDatabase):
    try:
        img = np.array(Image.open(photo_path))
        faces = face_pipeline.get(img)
    except Exception as e:
        print(f"Failed to process {photo_path}: {e}")
        return

    for i, face in enumerate(faces):
        try:
            box = face.bbox.astype(int)
            face_img = img[box[1]:box[3], box[0]:box[2]]
            face_pil = Image.fromarray(face_img)
            face_output_path = output_folder / f"{photo_path.stem}_face_{i}.jpg"
            face_pil.save(face_output_path)
            db.insert_embedding(face_output_path, face.embedding)

        except Exception as e:
            print(f"Failed to process face {i} in {photo_path}: {e}")


embedding_db = FaceEmbeddingDatabase()

#for photo_path in tqdm(jpg_files):
#    process_photo(photo_path, face_folder, embedding_db)

face_images = [f for f in face_folder.glob("*.jpg") if f.is_file()]
print(f"Saved {len(face_images)} face images to {face_folder}")

import plotnine as p9
import p9customtheme
import pandas as pd
import itertools

def cosine_distance(emb1: np.ndarray, emb2: np.ndarray) -> float:
    return 1 - np.dot(emb1, emb2) / (np.linalg.norm(emb1) * np.linalg.norm(emb2))

db = FaceEmbeddingDatabase()
photo_paths = db.list_photos()

pairs = list(
    itertools.islice(
        itertools.combinations(photo_paths, 2),
        5000
    )
)
distances = []
for photo1, photo2 in tqdm(pairs):
    emb1 = db.get_embedding(photo1)
    emb2 = db.get_embedding(photo2)
    if emb1 is not None and emb2 is not None:
        dist = cosine_distance(emb1, emb2)
        distances.append(dist)

df = pd.DataFrame({"cosine_distance": distances})

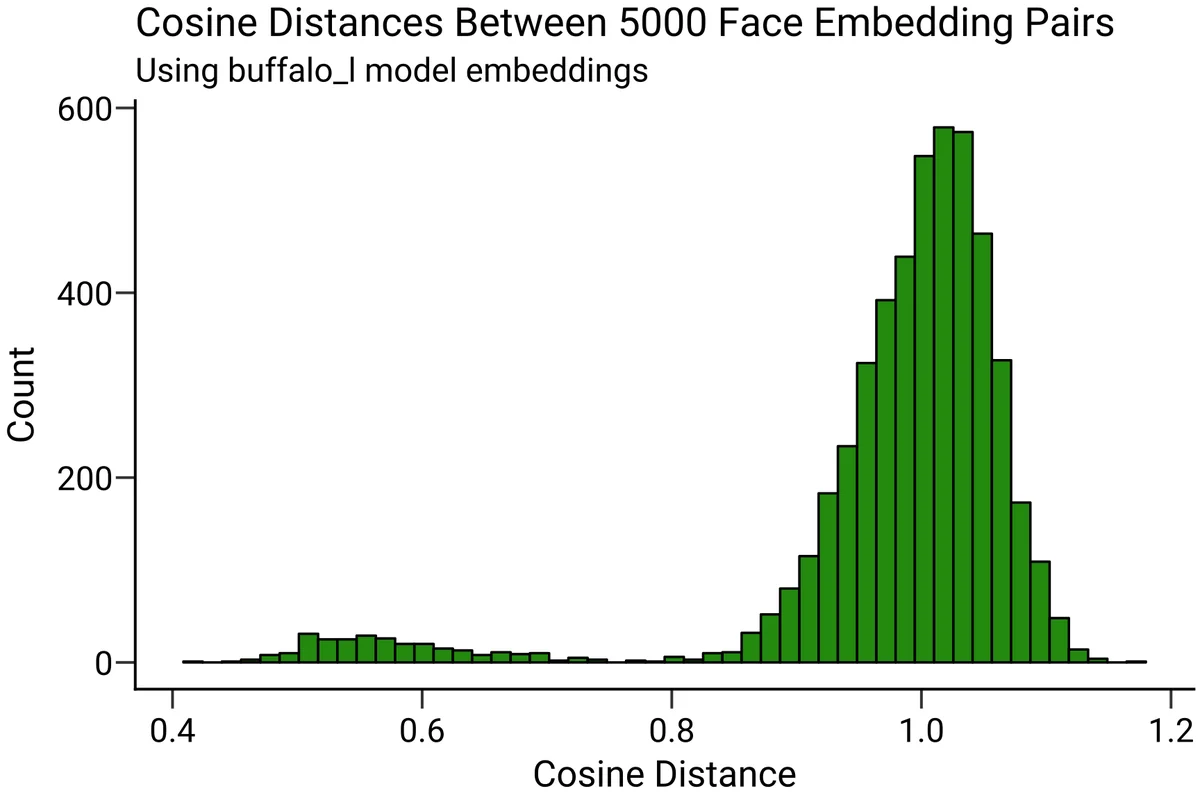

(p9.ggplot(df, p9.aes(x="cosine_distance"))
 + p9.geom_histogram(bins=50, fill="#23890F", color="black", alpha=1)
 + p9.labs(
     title=f"Cosine Distances Between {len(pairs)} Face Embedding Pairs",
     subtitle="Using buffalo_l model embeddings",
     x="Cosine Distance",
     y="Count"
 )
)

from random import sample

embedding_db = FaceEmbeddingDatabase()

# now we move all faces into folders based on their distance to the anchor faces
output_base = Path("data/facedetections/people")
output_base.mkdir(parents=True, exist_ok=True)


min_distance = 0.4  # threshold for considering a face as matching an anchor

face_images = [f for f in face_folder.glob("*.jpg") if f.is_file()]

def find_fotos(folder: Path):
    return [f for f in folder.glob("**/*.jpg") if f.is_file()]

people = [p.name for p in output_base.glob("*") if p.is_dir()]

for face_image in tqdm(face_images):
    face_embedding = embedding_db.get_embedding(face_image)
    if face_embedding is None:
        continue

    closest_person = None
    closest_distance = float("inf")

    # comapare to all images in all people folders
    for person_name in people:
        person_fotos = find_fotos(output_base / person_name)
        for foto in sample(person_fotos, min(6, len(person_fotos))):
            foto_embedding = embedding_db.get_embedding(foto)
            if foto_embedding is None:
                continue
            dist = cosine_distance(face_embedding, foto_embedding)
            if dist < closest_distance:
                closest_distance = dist
                closest_person = person_name

            if closest_distance < min_distance:
                break
    # if the closest distance is below the threshold, move the face image to that person's folder
    if closest_distance < min_distance and closest_person is not None:
        target_folder = output_base / closest_person
        target_folder.mkdir(parents=True, exist_ok=True)
        target_path = target_folder / face_image.name
        #shutil.move(str(face_image), str(target_path))
        #print(f"Moved {face_image} to {target_path} (distance: {closest_distance:.4f})")

people = [p.name for p in output_base.glob("*") if p.is_dir()]
inner_people_distances = []
n = 20
for person_i, person_name in enumerate(people):
    person_fotos = find_fotos(output_base / person_name)
    if len(person_fotos) < 2:
        continue
    if len(person_fotos) > n:
        # randomly sample n fotos
        person_fotos = sample(person_fotos, n)
    foto_pairs = list(itertools.combinations(person_fotos, 2))
    for foto1, foto2 in foto_pairs:
        emb1 = embedding_db.get_embedding(foto1)
        emb2 = embedding_db.get_embedding(foto2)
        if emb1 is not None and emb2 is not None:
            dist = cosine_distance(emb1, emb2)
            inner_people_distances.append({"person": f"Person {person_i}", "cosine_distance": dist})
df = pd.DataFrame(inner_people_distances)

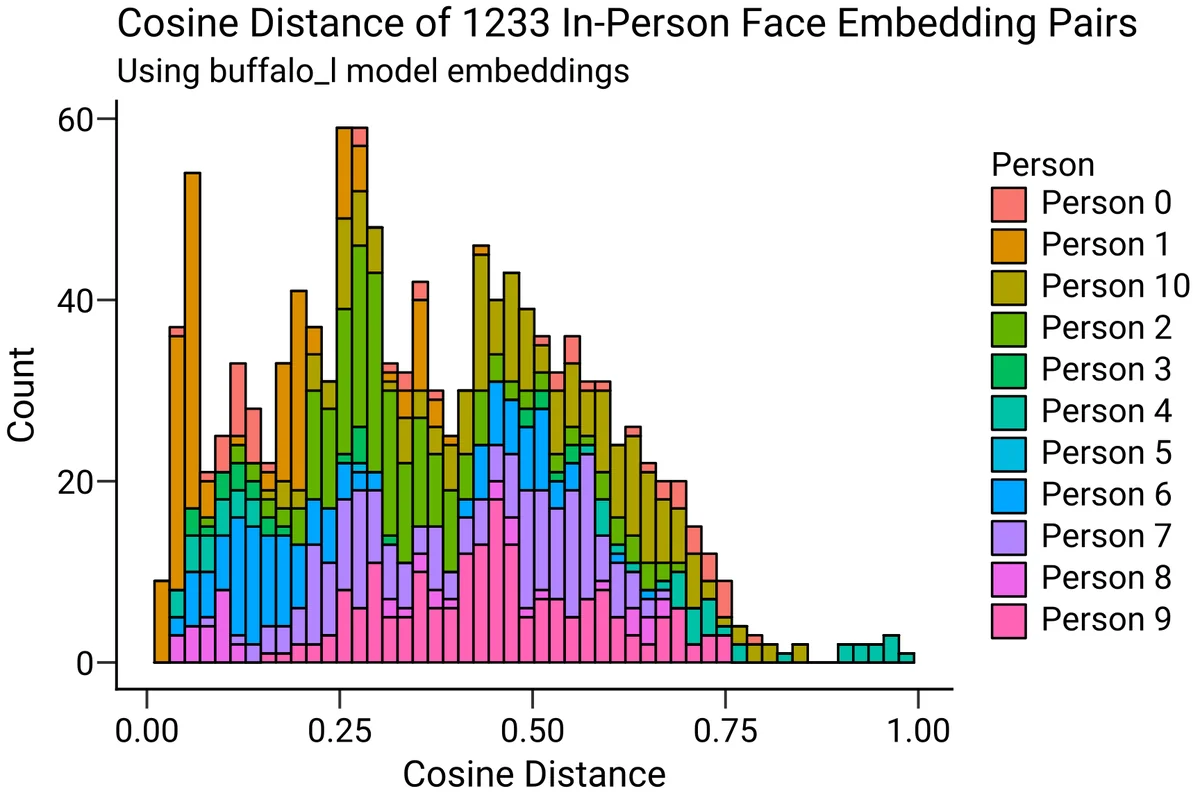

(p9.ggplot(df, p9.aes(x="cosine_distance", fill = "person"))
 + p9.geom_histogram(bins=50,  color="black", alpha=1)
 + p9.labs(
     title=f"Cosine Distance of {len(df)} In-Person Face Embedding Pairs",
     subtitle="Using buffalo_l model embeddings",
     x="Cosine Distance",
     y="Count",
     fill = "Person"
 )
)



from sklearn.cluster import HDBSCAN as hdbscan

db = FaceEmbeddingDatabase()
all_embeddings = db.get_all_embeddings()
all_images = [img for img in all_embeddings.keys()]
embedding_matrix = np.array([all_embeddings[img] for img in all_images])
clusterer = hdbscan(min_cluster_size=4, metric='cosine')
clusters = clusterer.fit_predict(embedding_matrix)

# lets see if we can find our people in the clusters
cluster_df = pd.DataFrame({
    "image": all_images,
    "cluster": clusters
})
# image_name
cluster_df["image_name"] = cluster_df["image"].apply(lambda x: x.name)
cluster_df["person"] = None

from scipy.ndimage import rotate
#image1 = "IMG_2656.jpg"
image1 = "PXL_20250322_103251717.jpg"
# among all images find these and extract faces
image1_file = [f for f in jpg_files if f.name == image1][0]
assert image1_file is not None, f"Image {image1} not found"

def rotate_image(image: np.ndarray, angle: float) -> np.ndarray:
    return rotate(image, angle, reshape=False)



embeddings = []
for angle in tqdm(range(0, 361, 5), desc="Rotating image and extracting embeddings"):
    img = np.array(Image.open(image1_file))
    rotated_img = rotate_image(img, angle)
    faces = face_pipeline.get(rotated_img)
    if len(faces) == 0:
        print(f"No faces found at angle {angle}")
    elif len(faces) > 1:
        print(f"Multiple faces found at angle {angle}, skipping")
    elif len(faces) == 1:
        for face in faces:
            embeddings.append((angle, face.embedding))
    else:
        print(f"Unexpected number of faces ({len(faces)}) at angle {angle}")

# cosine distance between all pairs of embeddings
distances = []
for (angle1, emb1), (angle2, emb2) in tqdm(itertools.combinations(embeddings, 2), total=len(embeddings)*(len(embeddings)-1)//2, desc="Computing cosine distances"):
    dist = cosine_distance(emb1, emb2)
    distances.append({"angle1": angle1, "angle2": angle2, "cosine_distance": dist})

df = pd.DataFrame(distances)
df["cosine_distance"] = df["cosine_distance"].round(2)
df["angle1"] = df["angle1"].astype(str) + "°"
df["angle2"] = df["angle2"].astype(str) + "°"


# fill the inverse distances as well to make a full matrix
df_inverse = df.rename(columns={"angle1": "angle2", "angle2": "angle1"})


df = pd.concat([df, df_inverse], ignore_index=True)
# add diagonal with zero distances
for angle, _ in embeddings:
    df = pd.concat([df, pd.DataFrame([{"angle1": f"{angle}°", "angle2": f"{angle}°", "cosine_distance": 0.0}])], ignore_index=True)

# sort angles numerically for better heatmap display
angle_order = [f"{angle}°" for angle in range(0, 361, 5)]
# ensure 0 is center so start at
first_half = angle_order[:len(angle_order)//2]
second_half = angle_order[len(angle_order)//2:]
angle_order = second_half + first_half

df["angle1"] = pd.Categorical(df["angle1"].to_list(), categories=angle_order, ordered=True)
df["angle2"] = pd.Categorical(df["angle2"].to_list(), categories=angle_order, ordered=True)
# make angles back to numeric
# plot heatmap of distances

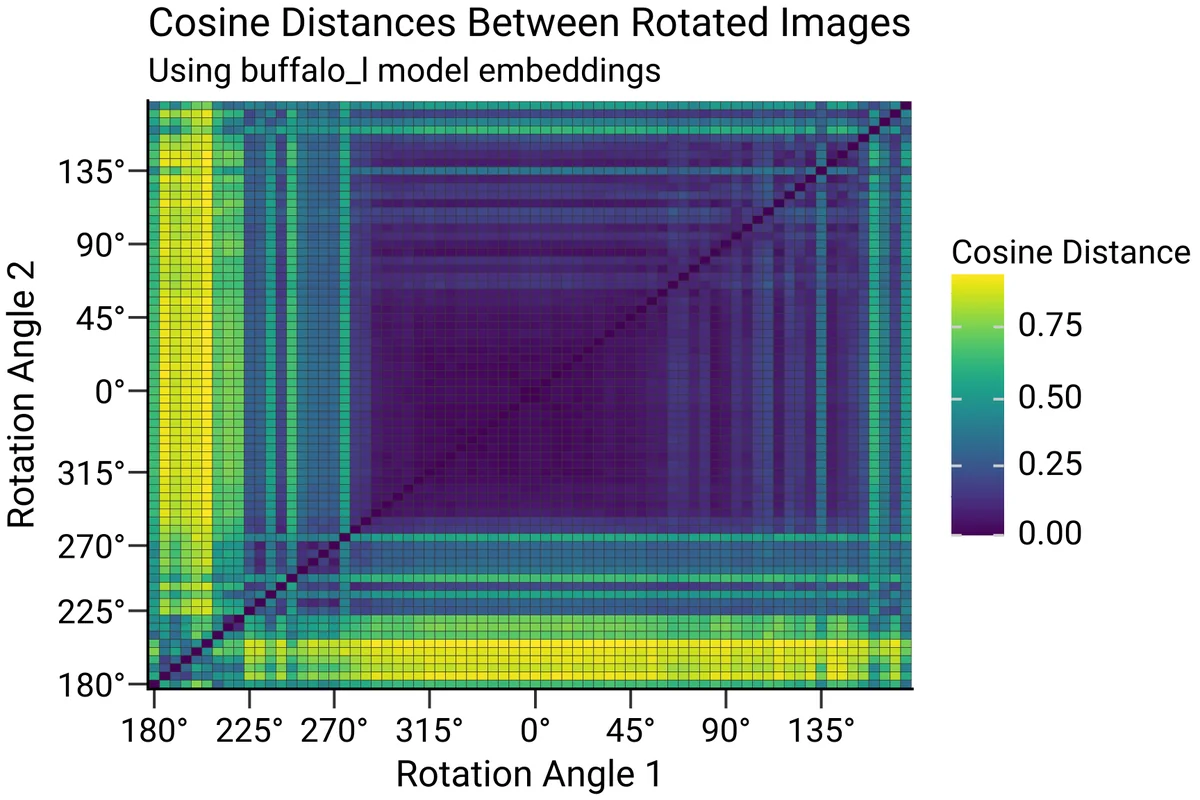

(p9.ggplot(df, p9.aes(x="angle1", y="angle2", fill="cosine_distance"))
 + p9.geom_tile()
 + p9.scale_fill_cmap(name="Cosine Distance")
 + p9.labs(
     title="Cosine Distances Between Rotated Images",
     subtitle="Using buffalo_l model embeddings",
     x="Rotation Angle 1",
     y="Rotation Angle 2",
 )

 + p9.scale_x_discrete(breaks=[f"{angle}°" for angle in range(0, 360, 45)])
 + p9.scale_y_discrete(breaks=[f"{angle}°" for angle in range(0, 360, 45)])
)

from sklearn.cluster import HDBSCAN as hdbscan

db = FaceEmbeddingDatabase()
all_embeddings = db.get_all_embeddings()
all_images = [img for img in all_embeddings.keys()]
embedding_matrix = np.array([all_embeddings[img] for img in all_images])

# for each image.name lets find which person it is by first loading all poeple folders
people = {p.name: find_fotos(output_base / p.name) for p in output_base.glob("*") if p.is_dir()}
people_df = [ ]
for person_name, fotos in people.items():
    for foto in fotos:
        people_df.append({"image_name": str(foto.name), "person": person_name})
people_df = pd.DataFrame(people_df)


def cluster_at(embedding_matrix: np.ndarray, min_cluster_size: int = 4):
    clusterer = hdbscan(min_cluster_size=min_cluster_size, metric='cosine')
    return clusterer.fit_predict(embedding_matrix)


images_df = []
for image in all_images:
    images_df.append({"image_name": str(image.name)})
images_df = pd.DataFrame(images_df)
images_df = images_df.merge(people_df, on="image_name", how="left")
# ensure rows are ordered as all_images
images_df = images_df.set_index("image_name").loc[[str(img.name) for img in all_images]].reset_index()

for min_cluster_size in range(2, 30):
    clusters = cluster_at(embedding_matrix, min_cluster_size=min_cluster_size)
    images_df[f"cluster_{min_cluster_size}"] = clusters
images_df.head(10)

# compute cluster evaluation metrics for each person, so we can for each person see how well they are clustered

from sklearn.metrics import adjusted_rand_score, normalized_mutual_info_score
person_metrics = []

for person in people.keys():

    person_images = images_df[images_df["person"] == person]
    cluster_sizes = images_df.columns[images_df.columns.str.startswith("cluster_")]
    for cluster_col in cluster_sizes:
        largest_person_cluster = -1
        # find the largest cluster for this person
        clusters = person_images[cluster_col].value_counts()
        if len(clusters) > 0:
            largest_person_cluster = clusters.idxmax()
            tp = clusters.max()
        else:
            tp = 0
        fp = (images_df[cluster_col] == largest_person_cluster).sum() - tp
        fn = len(person_images) - tp
        precision = tp / (tp + fp) if (tp + fp) > 0 else 0.0
        recall = tp / (tp + fn) if (tp + fn) > 0 else 0.0
        person_metrics.append({
            "person": person,
            "min_cluster_size": int(cluster_col.split("_")[1]),
            "precision": precision,
            "recall": recall,
            "person_fotos": len(person_images)
        })

person_metrics_df = pd.DataFrame(person_metrics)
# plot precision vs recall as a function of min_cluster_size
# melt the dataframe
person_metrics_melted = person_metrics_df.melt(id_vars=["person", "min_cluster_size", 'person_fotos'], value_vars=["precision", "recall"], var_name="metric", value_name="value")

person_metrics_melted["many_photos"] = person_metrics_melted["person_fotos"] > 20
# replace with ">20 photos" and "<=20 photos
person_metrics_melted["many_photos"] = person_metrics_melted["many_photos"].map({True: ">20 Photos", False: "≤20 Photos"})

# rename person to Person 1, Person 2, ...
person_mapping = {person: f"Person {i+1}" for i, person in enumerate(people.keys())}
person_metrics_melted["person"] = person_metrics_melted["person"].map(person_mapping)

# plot as lineplots
(

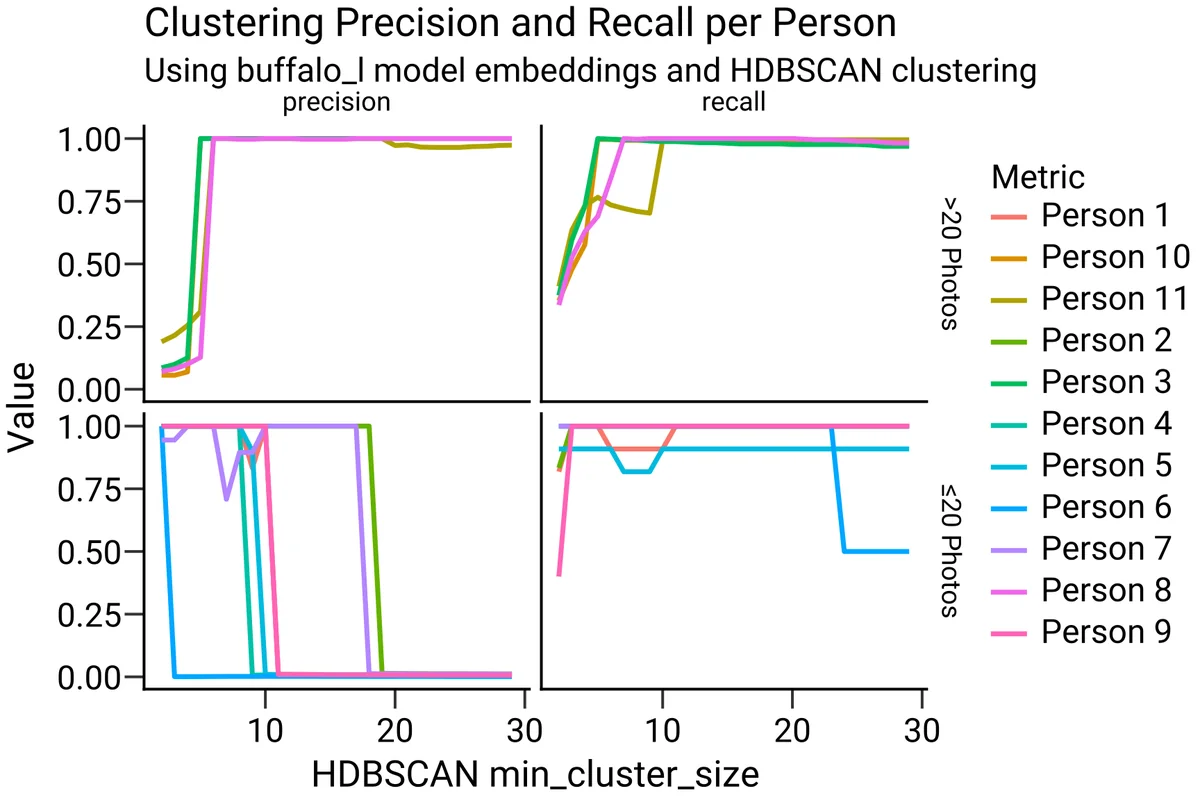

    p9.ggplot(person_metrics_melted, p9.aes(x="min_cluster_size", y="value", color="person"))
    + p9.geom_line(size=1)
    + p9.facet_grid("many_photos~metric")
    + p9.labs(
        title="Clustering Precision and Recall per Person",
        subtitle="Using buffalo_l model embeddings and HDBSCAN clustering",
        x="HDBSCAN min_cluster_size",
        y="Value",
        color="Metric"
    )
)
